基本型式

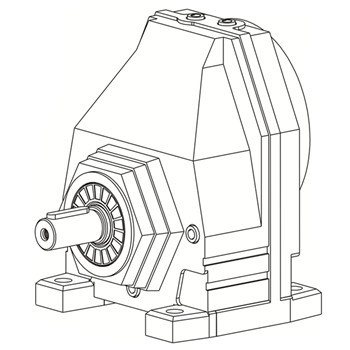

產品代號：RX..
產品說明：?jiǎn)渭?jí)斜齒輪減速傳動；底腳安裝；減速比范圍1.30～8.65；傳遞功率范圍0.12～
45kW。
fundamental type
Product code: RX
Product Description: Single stage helical gear reduction drive; Foot installation; Reduction ratio range from 1.30 to 8.65; Transmission power range 0.12~45kW.
產品代號：RXF..
產品說明：?jiǎn)渭?jí)斜齒輪減速傳動；底腳安裝；減速比范圍1.30～8.65；傳遞功率范圍0.12～45kW。
Product code: RXF
Product Description: Single stage helical gear reduction drive; Foot installation; Reduction ratio range from 1.30 to 8.65; The transmission power range is 0.12-45kW.

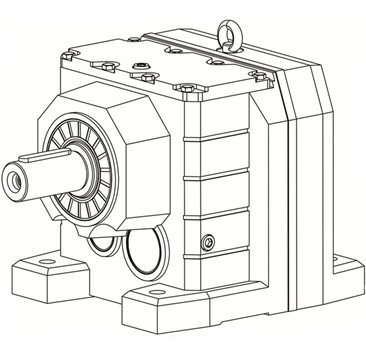

產品代號：R..
產品說明：兩級或三級斜齒輪減速傳動；底腳安裝；減速比范圍3.41～289.74；傳遞功率范圍0.12～160kW。
Product code: R
Product Description: Two or three stage helical gear reduction drive; Foot installation; Reduction ratio range from 3.41 to 289.74; The transmission power range is 0.12-160kW.

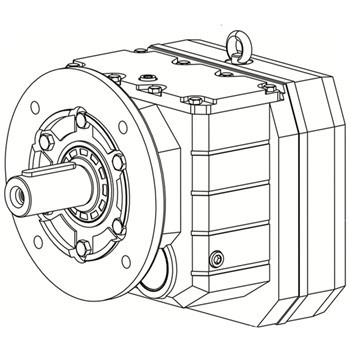

產品代號：RF..
產品說明：兩級或三級斜齒輪減速傳動；B5法蘭安裝；減速比范圍3.41～289.74；傳遞功率范圍0.12～160kW。
Product code: RF
Product Description: Two or three stage helical gear reduction drive; B5 flange installation; Reduction ratio range from 3.41 to 289.74; The transmission power range is 0.12-160kW.
產品代號：R..F
產品說明：兩級或三級斜齒輪減速傳動；B5法蘭安裝；減速比范圍3.41～246.54；傳遞功率范圍0.12～22kW。
Product code: R F
Product Description: Two or three stage helical gear reduction drive; B5 flange installation; Reduction ratio range from 3.41 to 246.54; The transmission power range is 0.12-22kW.
產品代號：RZ..
產品說明：兩級或三級斜齒輪減速傳動；B14法蘭安裝；減速比范圍3.41～246.54；傳遞功率范圍0.12～22kW。
Product code: RZ
Product Description: Two or three stage helical gear reduction drive; B14 flange installation; Reduction ratio range from 3.41 to 246.54; The transmission power range is 0.12-22kW.
輸入型式

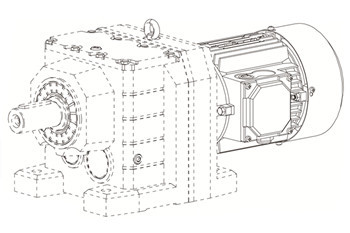

產品代號：Y..
產品說明：直聯電機輸入。直接將各種類型的電動機（如普通電機、剎車電機、防爆電機等）作為齒輪減速機的輸入，這樣可有效減小傳動裝置的外形尺寸。
Input type
Product code: Y
Product Description: Direct connected motor input. Directly using various types of motors (such as ordinary motors, brake motors, explosion-proof motors, etc.) as inputs for gear reducers can effectively reduce the external dimensions of the transmission device.

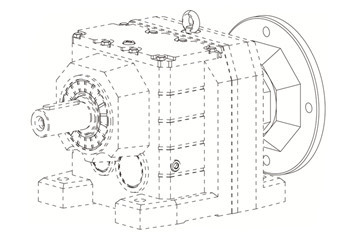

產品代號：AM..
產品說明：IEC法蘭輸入。通過一個AM輸入模塊，將標準IEC接口的電機與減速機連接。
Product code: AM
Product Description: IEC flange input. Connect the standard IEC interface motor to the gearbox through an AM input module.

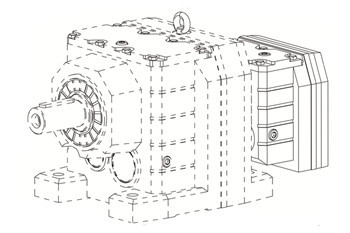

產品代號：AD..
產品說明：AD軸輸入。通過一個AD軸輸入模塊，可實現鏈輪、皮帶輪等方式作為減速機的輸入。
Product code: AD
Product Description: AD axis input. Through an AD axis input module, it is possible to use sprockets, pulleys, and other methods as inputs for the gearbox.
組合應用
產品代號：R../RF..
產品說明：為得到特別低的輸出轉速，可以將RF減速機做為R減速機的輸入。
Combination application
Product code: R/ RF
Product Description: To achieve a particularly low output speed, the RF gearbox can be used as the input for the R gearbox.

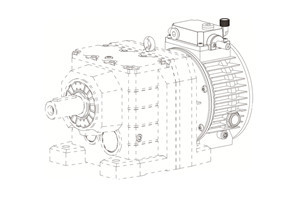

產品代號：R../UD..
產品說明：為得到特別低并且可以連續變化的輸出轉速，可以將UD無級變速器做為R減速機的輸入。
Product code: R/ UD
Product Description: To achieve a particularly low and continuously variable output speed, the UD continuously variable transmission can be used as the input for the R gearbox.
